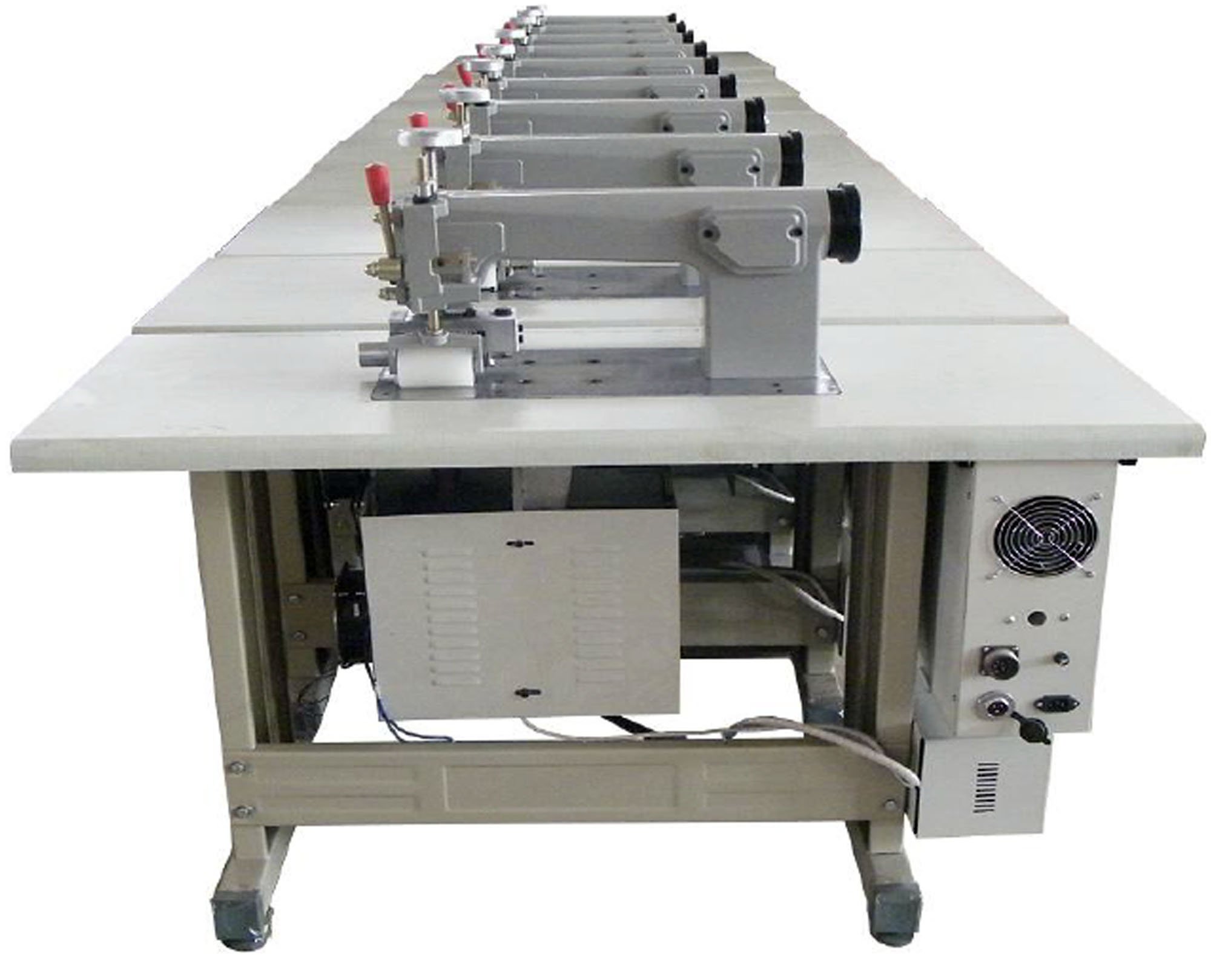

T-7651 ULTRASONIC LACE SEWING MACHINE, WORKING SPEED 0 TO 20000mm PER MINUTE, ROLLER SIZE 23mm TO 60mm

POWER SOURCE: 220V/110V
INOUT POWER: 2000W (3 POWER ADJUSTABLE)
OUTPUT FREQUENCY: 20KHz
WORKING SPEED: 0 TO 20000mm/MINUTE
ROLLER SIZE: 23mm TO 60mm Ø50mm (1 INCH AND 2 INCH STANDARD ROLLER)
DIMENSION OF PACKING: 1250mm X 600mm X 1300mm
GROSS WEIGHT: 140KG
WORKING TEMPERATURE: -10°C-28°C
PRESSURE SYSTEM: AIR TYPE OR MANUAL TYPE

SKU: T-7651 Category:


Description

FEATURE

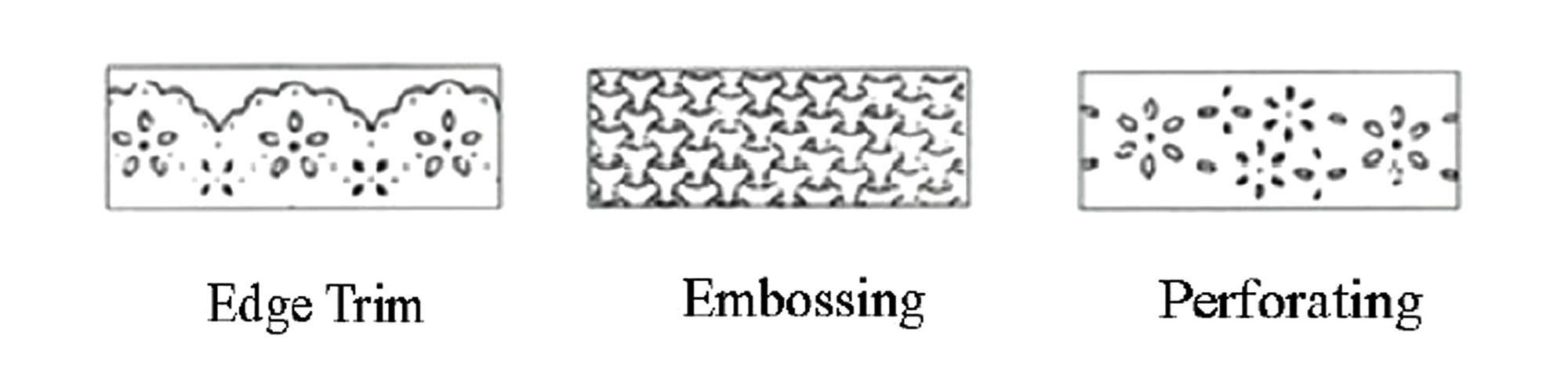

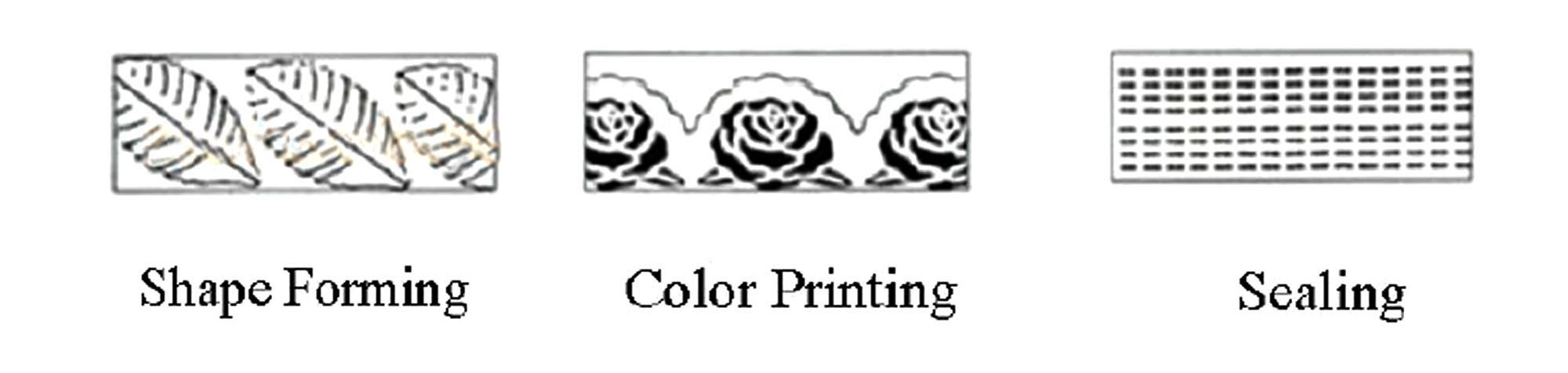

1. USE ULTRASONIC ENERGY TO CUT, WELD, SEAL, SEAM, PERFORATING, EMBOSS, STITCH, SLIT, FORM, COLOR AND FOLDING.
2. ELIMINATING TRADITIONAL NEEDLE AND THREAD, REDUCE MATERIAL COST AND MORE HIGH SPEED.
3. NO DISSIPATED EDGE, WRINKLE AND SHRINKAGE, CAN PRINT COLOR ON THE LACES WITH COLORED PAPER.
4. CONTINUOUS WORKING FOR MASS PRODUCTION.
5. NO SMOKE, SPARK AND DANGER DURING OPERATION.
6. EASY OPERATION REALIZES LOWEST LABOR COST; DOUBLE MOTORS STRUCTURE.
7. ACCURATE AND DURABLE ALLOY ROLLERS ARE DESIGNED BY COMPUTER AID MADE WITH SCULPTURED MOLDS.
8. THOUSANDS OF PATTERN ROLLER DESIGNS AVAILABLE, EASILY TO REPLACE.

TECHNICAL SPECIFICATION
ITEM: ULTRASONIC LACE SEWING MACHINE
POWER SOURCE: 220V/110V
INOUT POWER: 2000W (3 POWER ADJUSTABLE)
OUTPUT FREQUENCY: 20KHz
WORKING SPEED: 0 TO 20000mm/MINUTE
ROLLER SIZE: 23mm TO 60mm Ø50mm (1 INCH AND 2 INCH STANDARD ROLLER)
DIMENSION OF PACKING: 1250mm X 600mm X 1300mm
GROSS WEIGHT: 140KG
WORKING TEMPERATURE: -10°C-28°C
PRESSURE SYSTEM: AIR TYPE OR MANUAL TYPE

SUITABLE MATERIAL
FABRICS OF SYNTHETIC COMPOSITION OVER 65%, POLYESTER, NYLON, TC, SPONGE, NON-WOVEN FIBER, SATIN, THERMO PLASTIC FILMS. AND OTHER SYNTHETIC FIBRE MATERIAL

APPLICATION
LACE CLOTHING, SYNTHETIC FILTER BAG, SURGICAL GOWN, HAIR DECORATIONS, RAINCOAT, TABLECLOTH, CHAIR COVER, BEDSPREAD, PILLOWCASE, QUILT COVER, HANDKERCHIEF, CHRISTMAS RIBBON, DISPOSABLE OPERATING COAT, HOOK AND LOOP CUTTING, NONWOVEN BAG MAKING, SHOWER CURTAIN, ETC
