Description
SPECIFICATIONS:
PLASTIC AUTOMATIC CHARGER
• FEEDING CAPACITY: 200 KG / H
• AIR PUMP POWER: 0.75 KW
HOPPER PLASTIC DRYER
• HOPPER CUBAGE: 100 L
• FEEDING CAPACITY: 50 KG
• HEATING POWER: 3.7 KW
• BLOWER POWER: 0.12 KW
SJ65/30 SINGLE SCREW PLASTIC EXTRUDER
• SCREW, BARREL: SCREW AND BARREL MATERIAL 38CRMOALA, NITRIDING
• SCREW DIAMETER: 65 mm
• SCREW L/D: 30:1
• MAIN MOTOR SPEED ADJUSTMENT: INCORPORATE 22 KW ABB INVERTER
• BARREL HEATING: CASTING – ALHEATER WITH AIR COOLING
• HEATING POWER: 16 KW
• GEAR BOX: ZLYJ SERIES RIGID GEAR SURFACE GEAR BOX
• EXTRUSION CAPACITY: 20 TO 50 KG/H
HYDRAULIC SCREEN CHANGER
• MOTOR POWER: 1.1 KW
• STRUCTURE: DOUBLE POSITION, PLATE TYPE
• HEATERS: STAINLESS STEEL HEATING BAR
• MAX WORKING PRESSURE: 20 MPA
METERING PUMP
• CAPACITY: 40 CC
• ROTATE SPEED: 0 TO 50 RPM, SPEED CONTROLLED ABB AC INVERTER

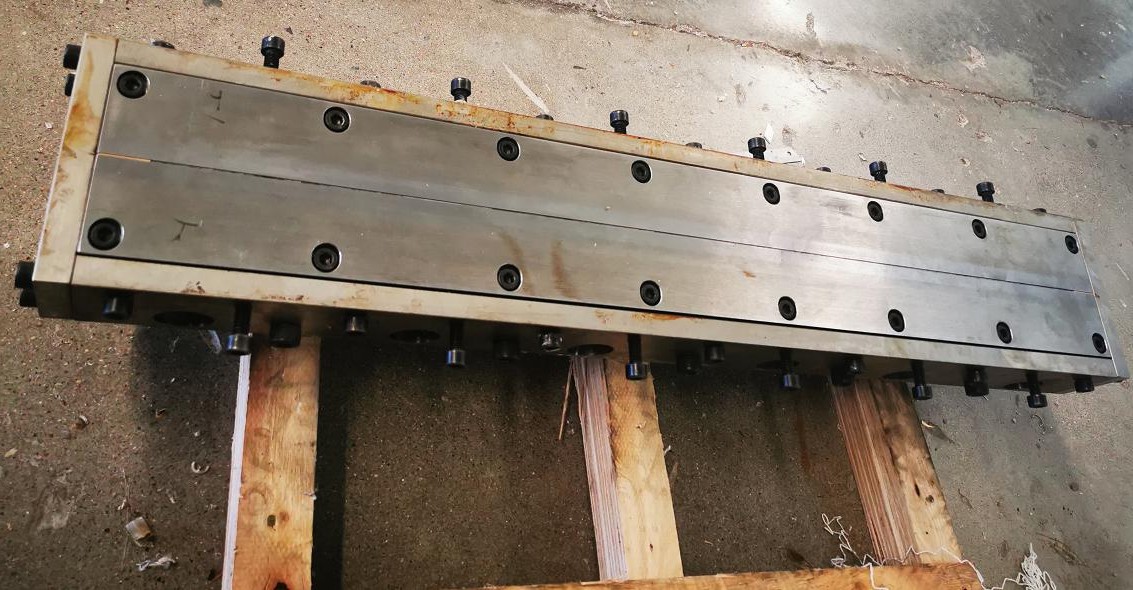

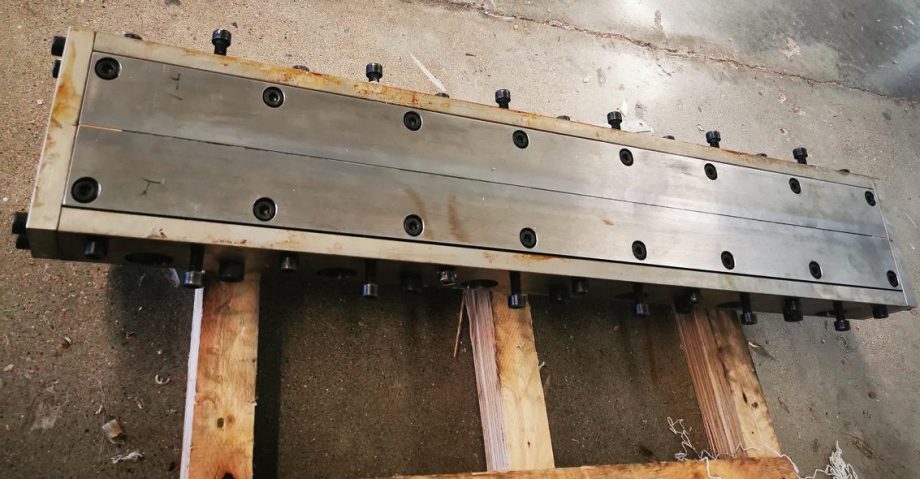

EXTRUSION MOULD
• STRUCTURE: T-DIE
• MATERIAL OF MOULD: HIGH QUALITY ALLOYED STEEL, SURFACE CHROME PLATED
• FLOW CHANNEL CHROME PLATED, POLISHED
• SPECIFICATION OF PRODUCT: WIDTH 600 mm
• AIR INCOME HOLES: 12 PCS, HIGH PRECISION TEMPERATURE CONTROL
BELT TYPE COLLECTING MACHINE
• ROTATE MOTOR POWER: 1.5 KW
• ROTATE SPEED CONTROL: INCORPORATE ABBAC INVERTER
• SUCTION FAN POWER: 3 KW X 2 SETS
ELECTROSTATIC ELECTRET DEVICE
• COMPONENT: INCLUDE ELECTROSTATIC GENERATOR, VOLTAGE RAISER, ELECTRET FRAME
• APPLICATION: GENERATE THE ELECTROSTATIC DURING PRODUCTION AND INCREASE THE FILTERING EFFICIENCY
SLIT AND HALF-OFF MACHINE AND COILER
• COILING ROLLER: DIAMETER 200 mm, WIDTH 800 mm
• SLIT BLADE: 4 PCS
• COILING MOTOR: 1.5 KW, SPEED CONTROLLED BY ABB AC INVERTER
• COILING METHOD: BY SELF FRICTION, INFLATABLE SHAFT X 2 PCS

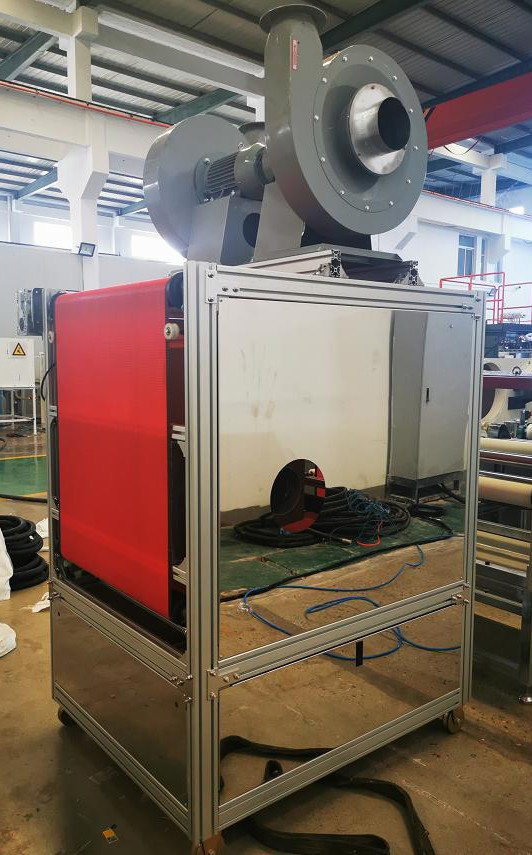

HOT AIR SYSTEM
• MOTOR POWER: 37 KW
• PRESSURE: 8 BAR
• CAPACITY: 6.2 M3/min
• PRESSURE: 1.0 MPA
AIR DRYER: 6 M3

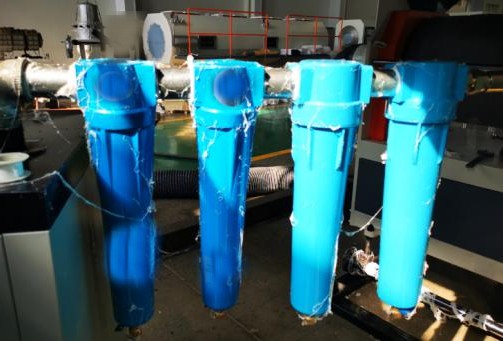

AIR FILTER: X 2 PCS

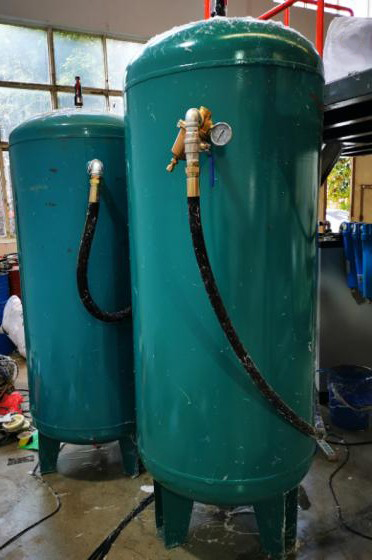

AIR TANK: 1 M3
HEATING SYSTEM
• HEATING POWER: 37 KW
